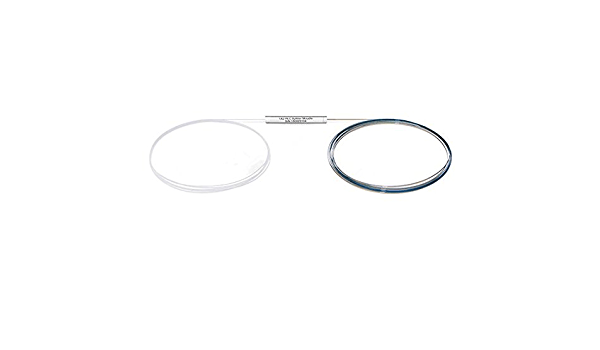

Single Mode Bare Fiber Optic PLC Splitters
Single Mode Bare Fiber Optic PLC Splitters are designed for precise optical signal distribution in modern networks. Built with advanced PLC technology, they ensure low insertion loss and excellent channel uniformity. Their compact bare fiber design allows flexible integration into splice closures, distribution boxes, and patch panels. Ideal for FTTH, PON, CATV, and telecom applications, these splitters provide durable and cost-effective performance.
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Single Mode Bare Fiber Optic PLC Splitters
Bare PLC Fiber Optic Splitter Product Specification
| Package Style | Steel Tube, Bare Fiber | Configuration Type | 1×2, 1×4, 1×8, 1×16 |
| Fiber Grade | Singlemode G.657A1 | Connector Type | None |
| Fiber Type | Ribbon Fiber | Temperature | Operating -20 to 70°C (-4 to 158°F) Storage -40 to 85°C (-40 to 185°F) |
| Input/Output Fiber Diameter | 250μm | Input/Output Fiber Length | 1.5m |
| Insertion Loss | ≤7.3dB | Return Loss | ≥50dB |
| Loss Uniformity | ≤0.6dB | Directivity | ≥55dB |
| Polarization Dependent Loss | ≤0.2dB | Temperature Dependent Loss | ≤0.5dB |
| Wavelength Dependent Loss | ≤0.3dB | Operating Bandwidth | 1260~1650nm |
| Split Ratio | 50/50 | Steel Tube Dimensions (HxWxD) | 0.16″x1.57″x0.16″ (4x40x4mm) |
