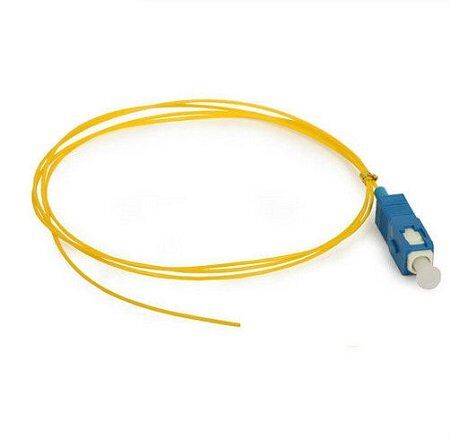

Simplex SC/UPC Single Mode Fiber Optic Pigtail
The Simplex SC/UPC Single Mode Fiber Optic Pigtail is designed for high-performance terminations and splicing in fiber optic systems. Built with 9/125µm single-mode fiber, it ensures low insertion loss and excellent stability for long-distance transmission. The SC/UPC connector provides precise alignment and consistent performance, making it suitable for telecom, FTTH, and data center applications. Compact and durable, this pigtail is an essential component for efficient fiber optic installations.
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Simplex SC/UPC 9/125 Single Mode Fiber Optic Pigtail
SC/UPC Fiber Optic Pigtail Product Specification
| Connector A | SC | Connector B | Unterminated |
| Fiber Mode | 9/125 μm | Fiber Count | Simplex |
| Fiber Grade | G.652.D | Minimum Bend Radius | 30 mm |
| Polish Type | UPC | Cable Diameter | 0.9 mm |
| Cable Jacket | PVC | Jacket Color | Yellow |
| Wavelength | 1310 nm/1550 nm | Durability | 500 Times |
| Insertion Loss | ≤0.3 dB | Interchangeability | ≤0.2 dB |
| Return Loss | ≥50 dB | Vibration | ≤0.2 dB |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
