Netlink Single-mode Media Converter
The Netlink Single-mode Media Converter is built for seamless conversion between fiber optic and Ethernet signals, enabling reliable long-distance data transmission. Compact, durable, and energy-efficient, it supports stable network connections across telecom, enterprise, and industrial applications. Ideal for FTTH, LAN extensions, and high-speed backbone connections.
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

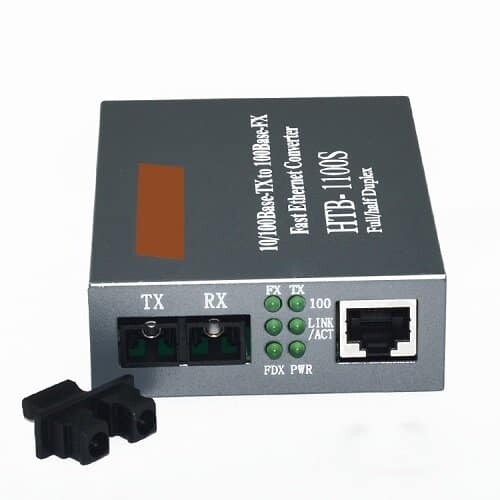

Netlink HTB-1100S 10/100M Single-mode Fiber Optic Ethernet MEdia Converter
Netlink Single-mode Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 120km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users.
- Auto negotiation function allows UTP port to select the transmission mode of 10/100M and Full Duplex or Half Duplex.
- UTP port supports MDI/MDI-X auto crossover.
- Multiple optical interface to be chosen: SC,ST or FC,singlemode/multimode
- Supporting 1552 Byte packet
- Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
- Design of internal or external power supply for selection by users
- Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX
- MAC address table: 1K
- Connector:
- UTP: RJ-45 10/100Mbps;
- Fiber: ST/SC/FC 100Mbps
- Cable:
- UTP: Cat. 5 UTP (the max distance up to 100m)
- Fiber (Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)
- Fiber (Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 20 -120km)
- Flow Control
- Full Duplex: Supporting standard IEEE802.3x
- Half Duplex: Backpressure
- LED: Power, FX FDX, FX Link/Act, TX 100, TX FDX, TX Link/Act.
- Power: AC 110V-240V to DC 5V; DC 48V to DC 5V.
- Ambient Temperature: 0 ℃ ～ 70 ℃
- Humidity: 5% ～ 90%
- Dimensions:
- Internal power: 30x110x140mm
- External power: 26x70x93mm
